How to remove your Powertrain Control Module (PCM) aka ECU.

2.4L Turbo

1. Disconnect the negative battery cable.
2. Lift vacuum line out from behind the upper support bracket (Powertrain Control Module) and (VACUUM LINES).


3. Unlock and disconnect the 3 or 4 electrical connectors (ELECTRICAL CONNECTORS) from the Powertrain Control Module (PCM).

4. Remove the clutch reservoir and relocate (CLUTCH RESERVOIR).

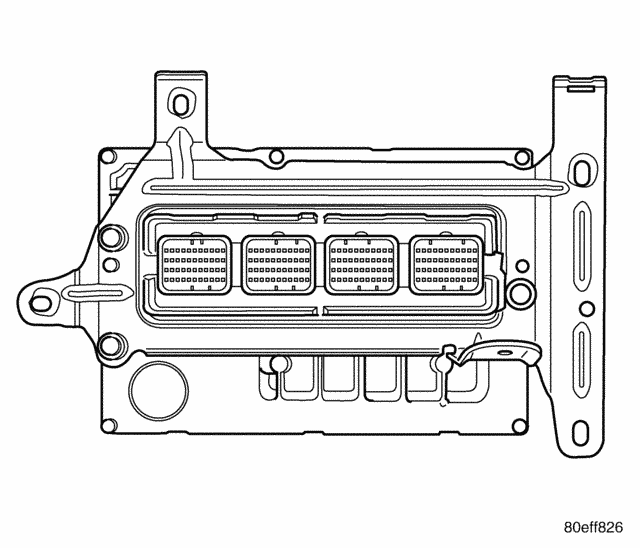

5. Remove the 3 mounting screws (1)(PCM MOUNTING SCREWS) and (PCM MOUNTING Screw AND LOCATION TAB) from the PCM mounting bracket and remove PCM and bracket assembly (2)(PCM REMOVAL/INSTALLATION).



6. Remove PCM and mounting bracket.
7. Remove the 3 screws from the PCM bracket to PCM (PCM AND MOUNTING BRACKET).
